Mini Bigfoot Trencher

Trencher Specifications

Model900
Cutting Depthup to 36"
Cutting Widths4" / 6" / 8"
Foot Depth Presets18" / 24" / 30" / 36"
Recommended Flow10-25 gpm
Motor Type2K Bell EATON
Max Pressure - DO NOT EXCEED3500 psi @ 16 gpm
Max Flow - DO NOT EXCEED25 gpm @ 2900 psi
Max Continuous Power34 HP
Length74"
Horizontal Height32"
Width38"
Weight320 lbs

For detailed specifications on the complete range available contact your local professional Digga dealer

Designed specifically for mini loaders and walk behind machines, the TNAttachments Mini Bigfoot Trencher is the lightest, most compact, powerful mini trencher on the market today. Unique design gives the operator consistent digging depth, efficient spoil to one side of the trench and finely crumbed spoil for effective compaction back into the trench. Provides minimal ground disturbance to surrounding conditions and a cleaner job finish.

Trencher Chain Options

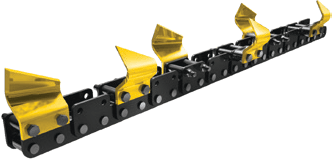

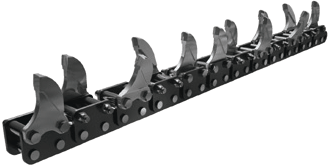

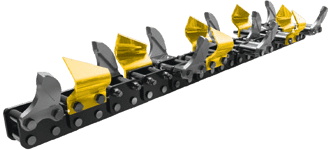

EarthCombinationDiggatac
Cup tooth on every second stationCombination of earth and tungsten teethFull tungsten teeth on every station
Best for soft, clean ground with no floaters or tree rootsSuitable for most applications. Cuts through hard soils, roots, soft shale, & rocky groundBest for rocky hard shale, asphalt, and frozen ground

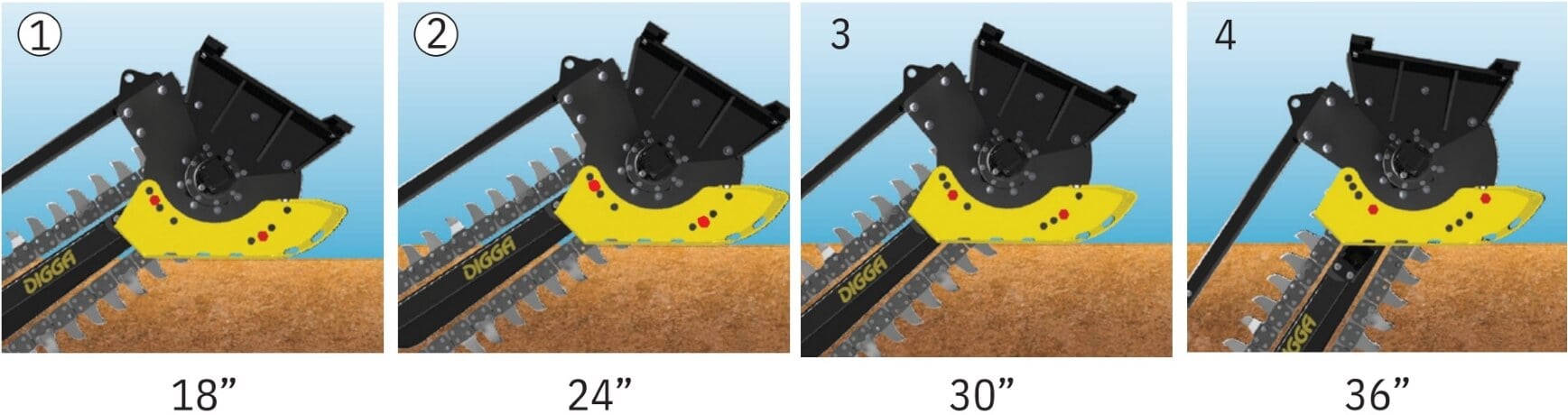

Comparison of different settings on Mini Bigfoot Trencher

Features

Quality gearbox & motor
Adjustable skid foot to maintain constant digging depth
High quality bearings and components
Up to 36" digging depth and 8" digging width
3 different chain options available - Combo and Diggatac

Why a Trencher Over a Bucket?

Efficient

Narrower trenches to greater depths can be achieved.

Faster

A trencher will cut ground faster than an excavation bucket as it cuts in a continuous movement.

Easier

The spoil is excavated more finely with a trencher so the trench can be easily backfilled with better compaction. As the spoil is much finer, it is suitable for the bedding of pipes and cables, etc.
